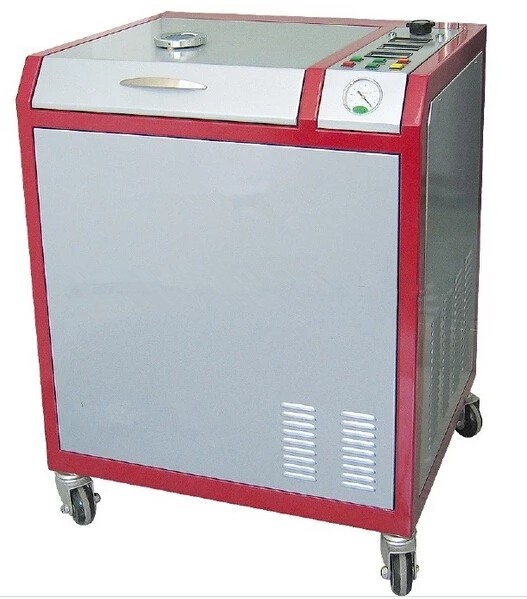

AX-ZL5 Medium Frequency Vacuum Induction Casting Machine

Purpose

This unit can be used with most dental alloys except titanium. It can be used for casting partial frameworks as well we crown and bridge.



Description
The AX-ZL5 Medium Frequency Induction Casting Machine is developed by Aixin Medical. The patented casting machine features compact size, light weight, easy operations, no radiation, and low power consumption. As the casting process is done in an oxygen-free state, the integrity, density and success rate of the castings is increased, which also prevents sand holes, bubbles, and oxidation.



Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2,500W
Motor: 370W
Centrifugal Rev: 550rpm
Centrifugal Radius: 21cm
Casting Method: Centrifugal Casting
Max. Melting Amout: 50g
Heating Method: Medium Frequency Induction Heating
Melting time: 30g≤185sec (standard)
Cooling Fashion: Water Cooling
Vacuum Pump: 120W,1440rpm
Working Pressure: -0.08~-0.09MPa
Vacuum duration:≤1min
Dimensions: 91cm x 68cm x 54cm (H W D)
Shipping Dimensions: 109cm x 80cm x 650cm (H W D)
Weight: 120kg



Parts Included
Machine × 1
Manual × 1
Fuse × 10
Crucible × 5
Crucible Base × 2
Brush ×1
Tongs × 1
Casting Rings × 3
"V" Rings Bracket × 2
Windpipe × 1
Rubber Gasket × 2
Silicon Block Gine × 1
Silicon Bridge × 2
Internal Thread × 1
Connection × 3
