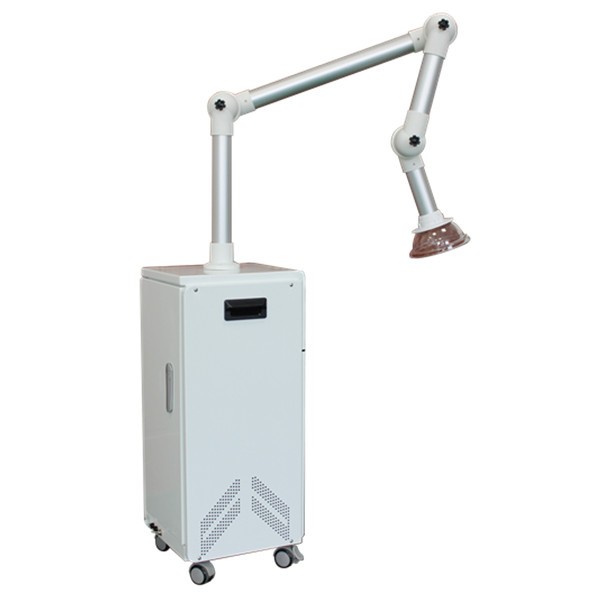

KS-E1000 External Oral Suction Device

Feature:

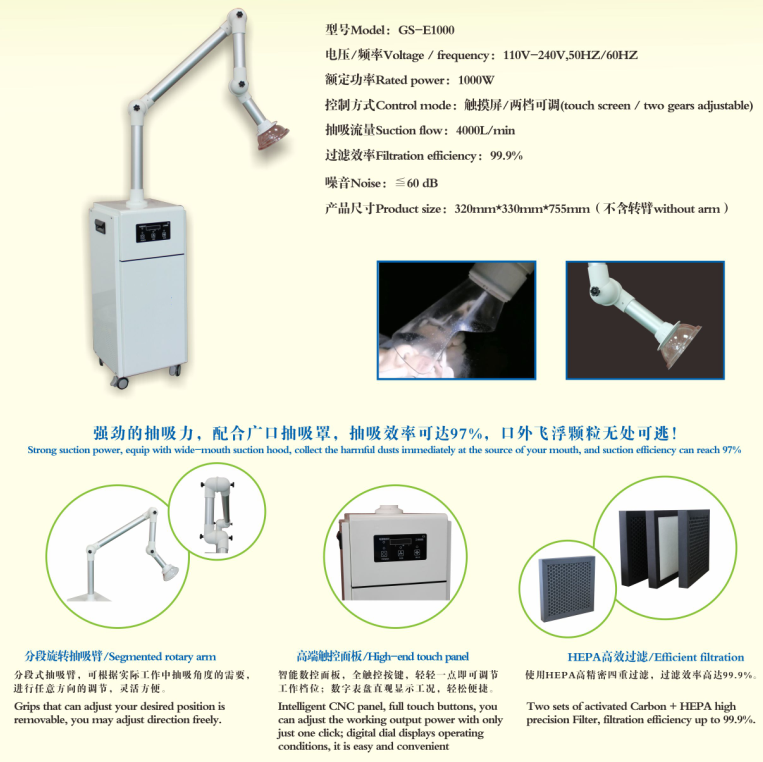

Product name	External Oral Suction Unit
Host size	320*330*755mm(W*D*H)
Host packaging size	400*420*900mm(W*D*H)
Swing arm packaging size	710*210*210mm(W*D*H)
Suction arm	Segmented universal adjustment
Net weight (including rotating arm)	30KG
Host gross weight	36KG
Gross weight of boom	2.5KG
Voltage/frequency	110-240V,50/60HZ
rated power	1000W
control mode	touch screen, two gears of adjustable
Suction flow	4000L/min

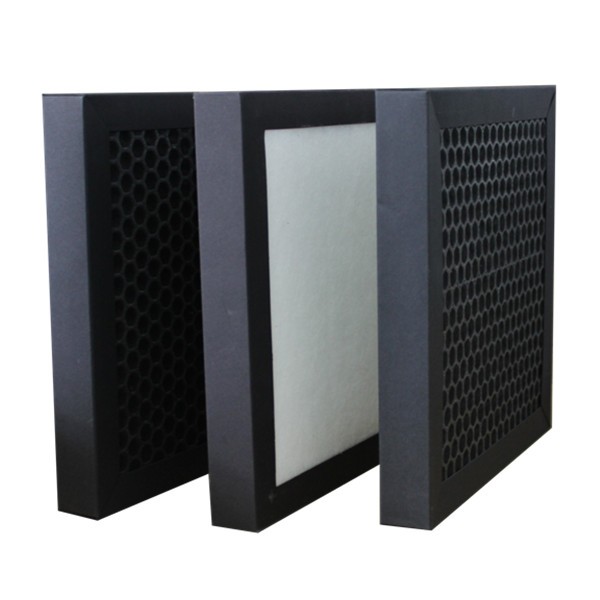

filter	HEPA precision filtration
	Filtration efficiency 99.99%
disinfection	UV + plasma sterilization
Noise	<=60dB



Working principle description:
Suction-filtering-disinfection: open the oral suction system to effectively capture microparticles such as droplets, aerosols, crushing, dust, and odors. The suction gas is filtered through primary HEPA + activated carbon to remove particles of more than 5um in size, and secondary HEPA + activated carbon It filters out particles larger than 0.3um, and the filtration efficiency is as high as 99.9%. The filtered gas is then sterilized by built-in UV and plasma to discharge clean gas.
