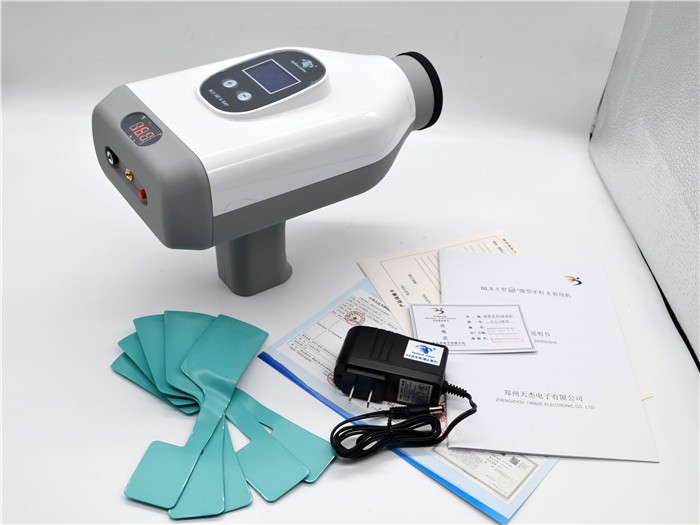

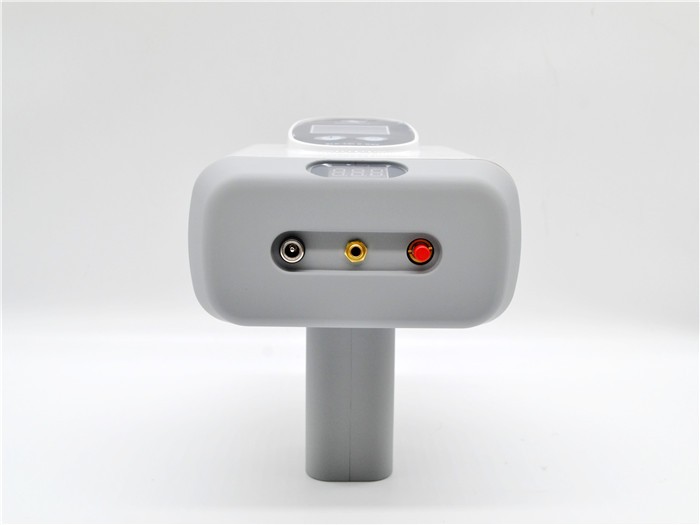

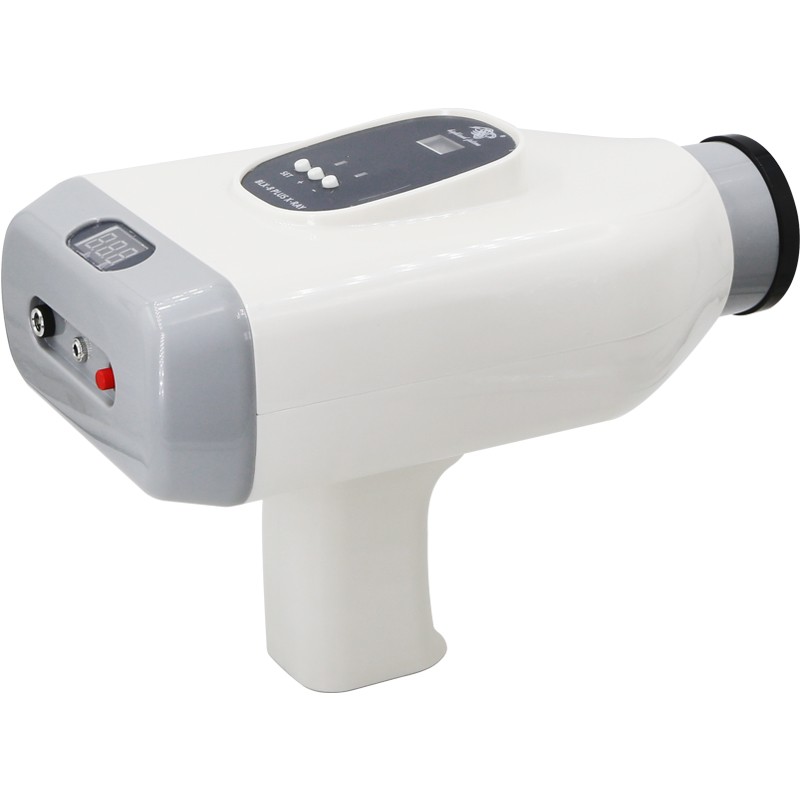

KS-XR523 Plus Portable X-ray Unit

Product introduction:

This model combines the advantages of similar products found at home and abroad; it eliminates the shortcomings of the on-frequency X-ray machine (high current intensity and excess amounts of scrap x-rays).Using a Toshiba 0.3 micro-focus tube.The tube voltage frequency of this machine is 30 KHz,and the tube current is 1 MA. The radiation scope is at an angle of 24 degrees, located within a distance of 1.2 meters ahead. This is an innovative Chinese design named the "Green X-ray Machine."

TECHNICAL SPECIFICATIONS:

Tube Voltage	60kV
Tube Current	1mA
Time Exposure	1~~9s
High pressure generator	30kHz DC
Rated Power	60w
Focal Spot To Skin Distance	>20CM
Focus Spot Size	0.3mm(TOSHIBA)
Charger Input Voltage	AC110V~220V
Supply Frequency	50Hz±1%
Radiation Leakage	<20ugy/h
Battery	24V DC 8000MA
Weight	2KG
Dimensions	25 cm×11..5 cm×17cm (L×W×H)

Reference of the time of exposure:

Tooth	Adult	Child
Central & Lateral	0.8-1.2	0.8-1.0
Cuspid & 1st Bicuspid	1.2-1.4	1.0- 1.2
Upper 5,6	1.6-1.8	1.4-1.6
Upper 7,8	3.0-3.5	2.8-3.3.
Lower 5,6	1.8-2.0.	1.6-1.8
Lower 7,8	2.0-2.5	1.8-2.3
