Technical Data
Dimension: 258 mm x 138 mm x 183 mm
Weight: 3.6 kg
Voltage Requirements: AC 100-240 V AC 60/50 Hz
Scan Time: 10 seconds
Resolution: 17 lp/mm
USB Cable Length: 1.8 meters

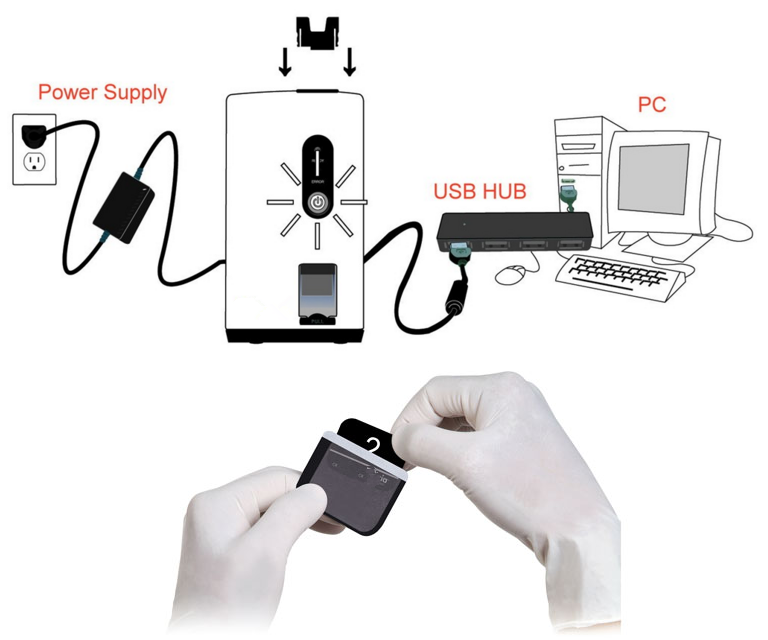

Connection Type: USB 2.0
Plate Sizes: Sizes 0, 1, 2, 3
Gray Level: 14 bit

Computer System Requirements
Note: Computer not included Windows Versions Min. RAM Min. Video Card Min. Hard Drive Space Monitor Other Windows XP, Windows Vista, Windows 7, Windows 8, 32/64 bit 512 MB, 1 GB recommended Pentium4 CPU or better SVGA 1024 x 768 40 GB High Quality Display (Flat Panel or CRT) recommended. 1000:1 Contrast Ratio and 0.255 dot pitch recommended Backup System highly recommended. High Speed Internet is suggested for enhanced technical support assistance.

Small Tabletop Design
The Scanner is not only small enough to fit in nearly every dental operatory, but also robust enough to be placed in a central location for use by the entire office.

High Resolution
With innovative scanning technology, in a matter of a few seconds you can have Crystal Clear X-Raysappear on your computer screen for diagnostics or to show your patients.

Automatic In-line Eraser

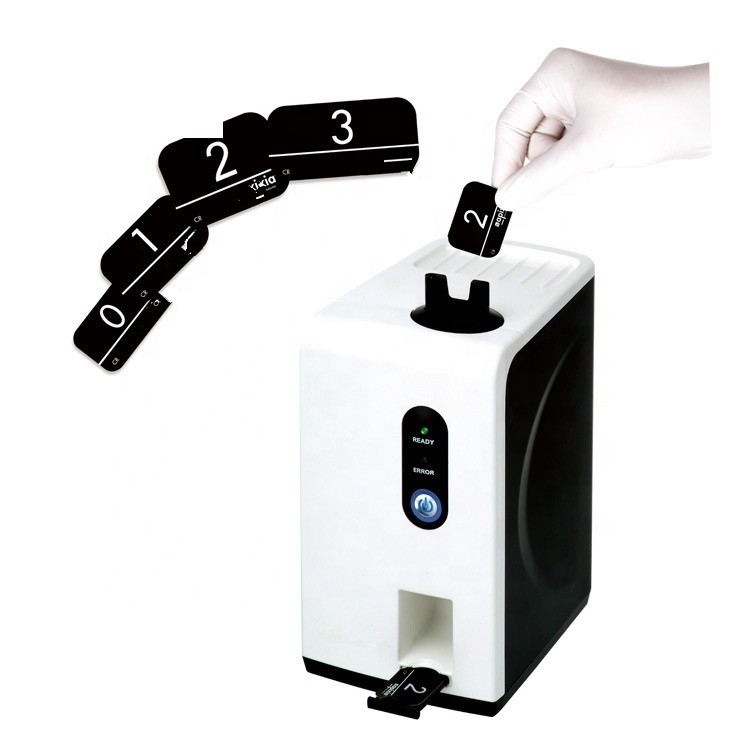

The In-line eraser clears the phosphor plate for its next use automatically. When the plate is ejected from the bottom of the machine, it is ready for your next patient. Plus, the Plates are re-usable thousands of times to maximize your investment.

Easy-to-Use Software
Digital Imaging Software is included FREE of charge with the Dental PSP Scanner. Simplicity, ease of use, and intuitive design were just a few things doctors like you wanted in the software.

Faster than Film
With the Scanner you can have x-rays in half the time of developing film x-rays. Best of all is you have all the speed and chemical free benefits of digital radiography.
