Features:

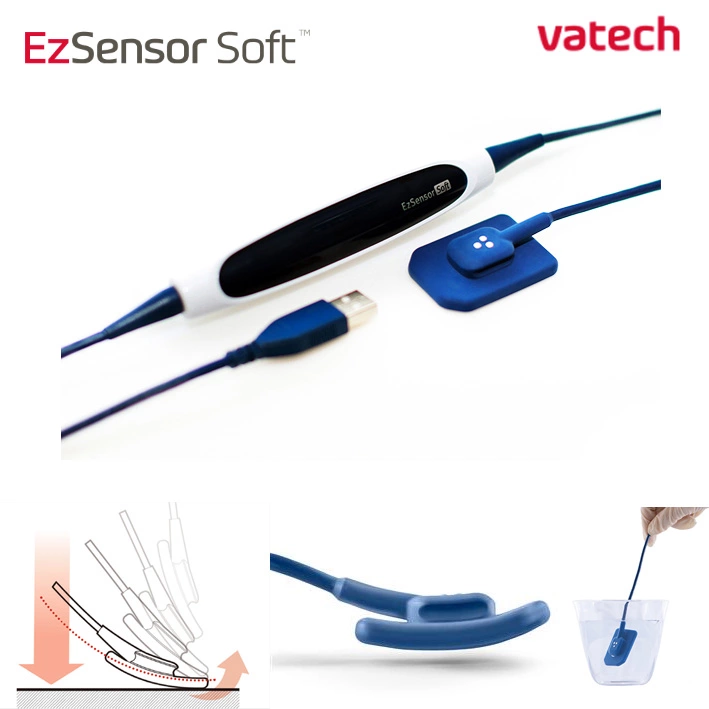

1. It is the latest digital intra oral sensor with round off edges to maximize the patient comfort.
2.The patterned internal metal casing and shock absorption design warrant the durability even the
most harsh operating environment.
3.The patterned cable connection structure reinforced the stability of the digital image processing while maximizing the flexibility to maintain the cable integrity during frequent and extreme bending.
4.The supreme quality of diagnostic images providedr is essential to a successful implant surgery and endodontic treatment.
5.It improves the practice management efficiency by shortening the processing time for a diagnostic image without the hassle of film developer and dark room.
6.It is equipped with Hybrid CMOS technology (Onchip Trigger, Switching, Redundancy Signal) to provide the highest image quality.
7.Its plug-in type USB 2.0 PC Interface guarantees the user convenience and simple interaction.

Specifications
1.Type of sensor: Low Noise Hybrid CMOS
2.Dimension: 1.15 X 1.52 X 0.19 inch (29.2 X 38.7 X 4.9 mm)
3.Active Pixel Array: 31.8*24mm
4.Date transmission: USB2.0
5.Probe cable length: 3m
6.Power: 3.5w
7.Dynamic Range: 4096
8.Size of each point of the picture: 0.035mm
9.Signal to Noise Ratio >37dB
10.Working condition: 0--40 degree Celsius
11.Working humidity: <75%

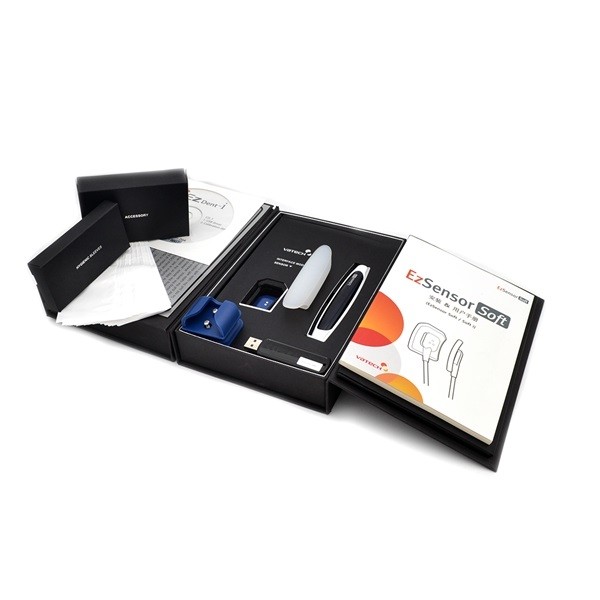

Each sensor includes
1.Sensor
2.CPU
3.Connecting line of USB
4.Trapping software of VATECH-3
5.Management software of EasyDent V4 Viewer dentistry images
6.Wall build-up protective covering (CPU + sensor)
7.50 sets of disposable sanitary protection
8.5 sets of flexible glue protection
