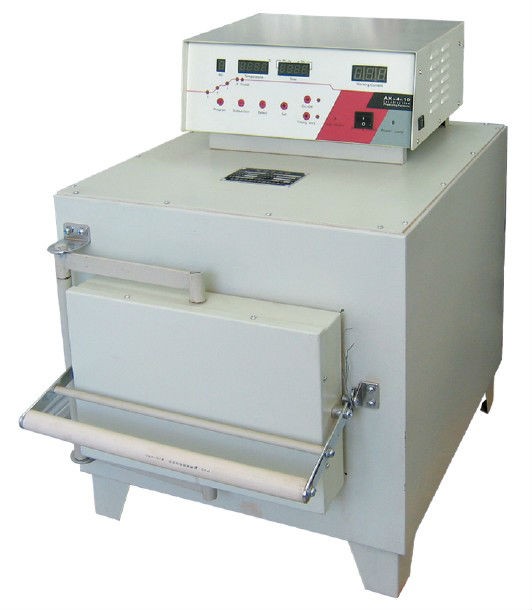

AX-4-10A Intelligent Burnout Furnace

AX-4-10A Intelligent Burnout Furnace

Purpose
This unit is used for the wax elimination of casting rings and preheating the crucible in dental laboratory.

Description
he AX-4-10A Burnout Furnace was updated from AX-4-10, this furnace is developed according to the requirements of dental laboratories, the programs are suitable for the high heating temperatures of precious alloys. The temperature control shows the temperature, stage, and heating time of the heating process. The programmable multi-stage feature allows unattended operations. It also features delay start mode, which can be adjusted from 1-96 hours. The refractory brick furnace wall is excellent for reducing mechanical deterioration and chemical corrosion. The automatic control system of the fan ensures a clean working environment.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 4000W
Temperature Rating: 1000℃
Chamber Materials: Fire Brick
Capacity: Large Casting Rings x 7 or Large Casting Rings x 4 and Small Casting Rings x 4
Chamber Size: 12 × 30 × 20cm (H W D)
Dimensions: 71cm x 75cm x 46cm (H W D)
Shipping Dimensions: 88cm x 83cm x 54cm (H W D)
Weight: 120kg
