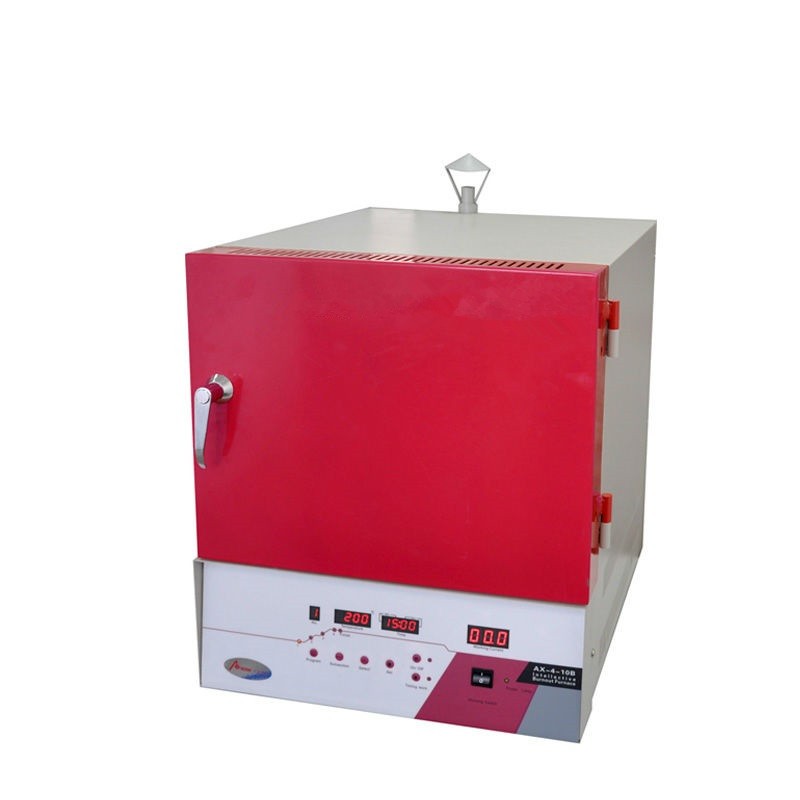

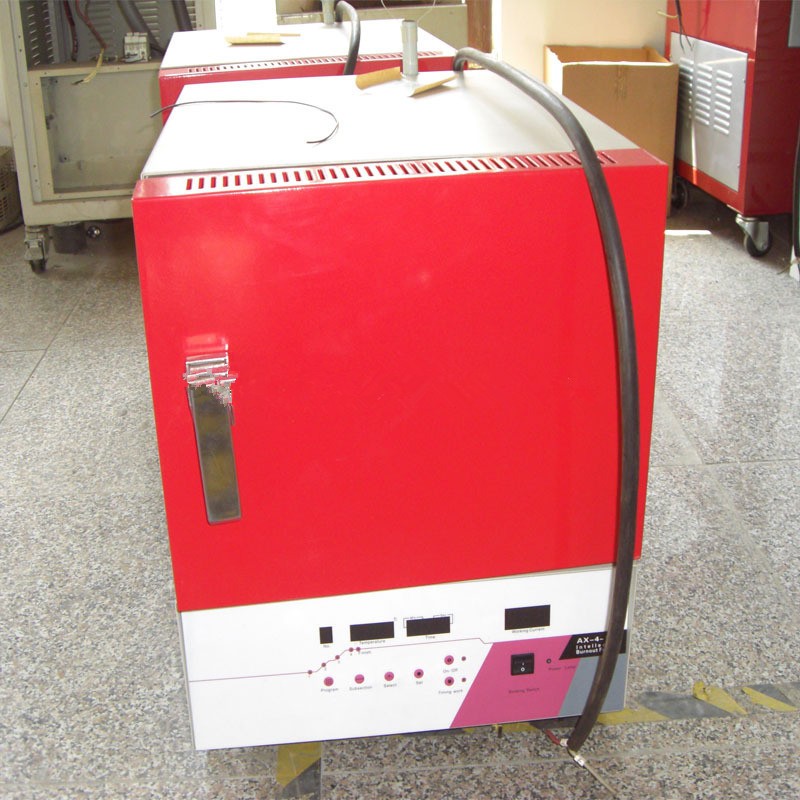

AX-4-10B Intelligent Burnout Furnace

AX-4-10B Intelligent Burnout Furnace

Purpose

This unit is used for the wax elimination of casting rings and preheating the crucible in dental laboratory.

Description

Comparing to conventional materials, the ceramic fiber furnace walls allows quick heat rise and cooling, only 15 minutes is needed for the temperature to reach 950°C. The furnace door is made of light-weight refractory materials. It also features automatic control system, smooth door movement and excellent thermal insulation performance. The automatic control system of the fan ensures a clean working environment.

Technical Data

Power Supply: 220V/110V 50/60Hz
Power Consumption: 4,000W
Temperature Rating: 950℃
Heating Elements: Ceramic Fiber
Capacity: Large Casting Rings x 7 or Large Casting Rings x 4 and Small Casting Rings x 4
Chamber Size: 12 × 30 × 20cm (H W D)
Dimensions: 70cm x 64cm x 47cm (H W D)
Shipping Dimensions: 74cm x 72cm x 55cm (H W D)
Weight: 65kg
