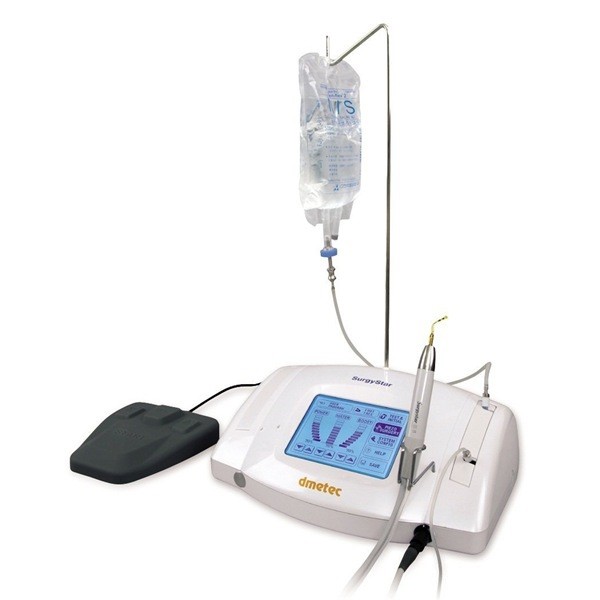

Dmetec Surgical Star Piezosurgery

Ultrasonic Piezo Implant Surgery is developed and optimized for Osteotomy and Osteoplasty in Implantology, Periodontology, Endodontics and Orthodontic Surgery with elaborating cutting for surgical precision and intra-operative sensibility, selective cutting for hard tissues without any damages to soft tissues. SurgyStar Series has an automatic tuning circuit that offsets wear of the inserts, thus ensuring work in constant conditions of maximum efficiency, water cleaning function, automatic protection control, operated easily by wide interface with touch screen panel with specification of 24KHz to 32KHz working frequency, very light weight and small size to be easily portable.

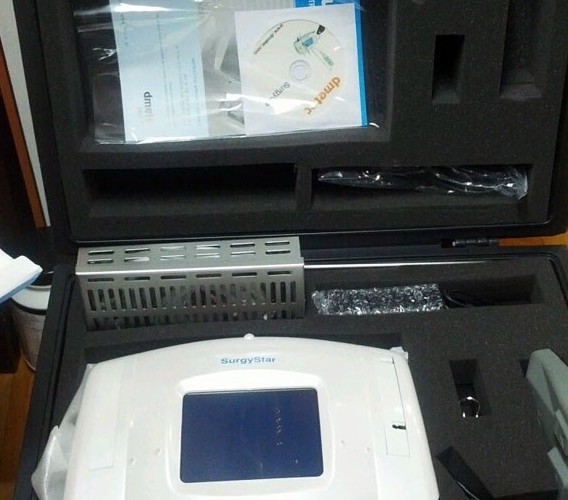

SurgyStar Components:

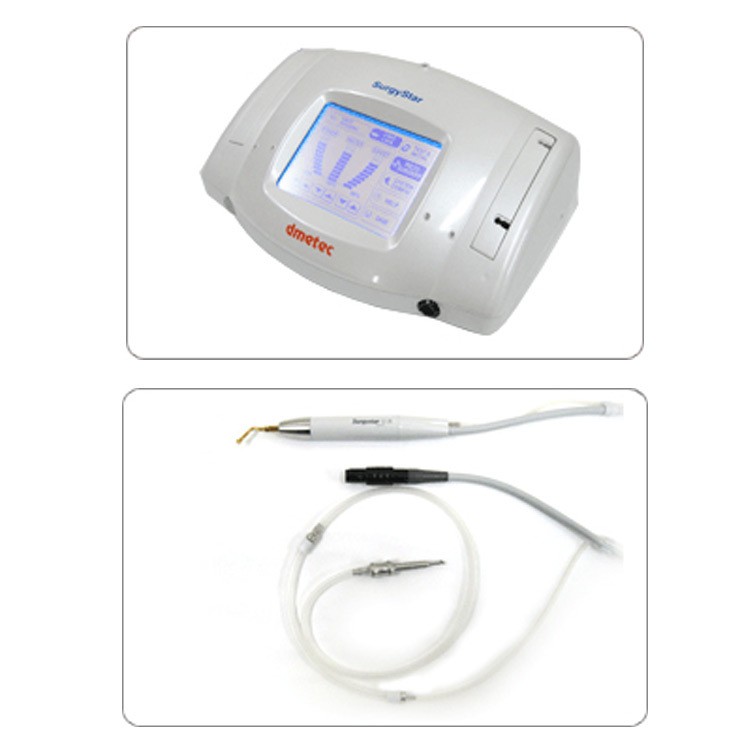

Main Unit Dimension : 320(W) X 135(H) X 235mm(D)

Handpiece with Cable: Autoclavable

Autoclavable Tray

Transformer

Autoclavable with handpiece, cable, tips, torque wrench

water connecting tube & handpiece holder

Foot Switch

- Foot Lock function with Menu of adjustable volume of water, power & boost

Foot control to keep the hands free

Piezo Basic Kit (Including Tray): BS01 HB02 SL01 EX01 EX02 EX03 BS1S BS2L BS2R HB01



Features:

- Input : 100-240V, 50-60Hz
- Output : +24V, 2.7A

Working Frequency : 24 KHz ~ 30 KHz
Dimension : 320 (W) X 135 (H) X 235mm (D)
Good design with built in Peristaltic Pump.
Self cleaning Function : enables cleaning cycles to be
carried out on the water tubing.
Automatic Protection Control : Shut down power and
water supply in case of incorrect use of the
handpiece and insert tip.
