specification

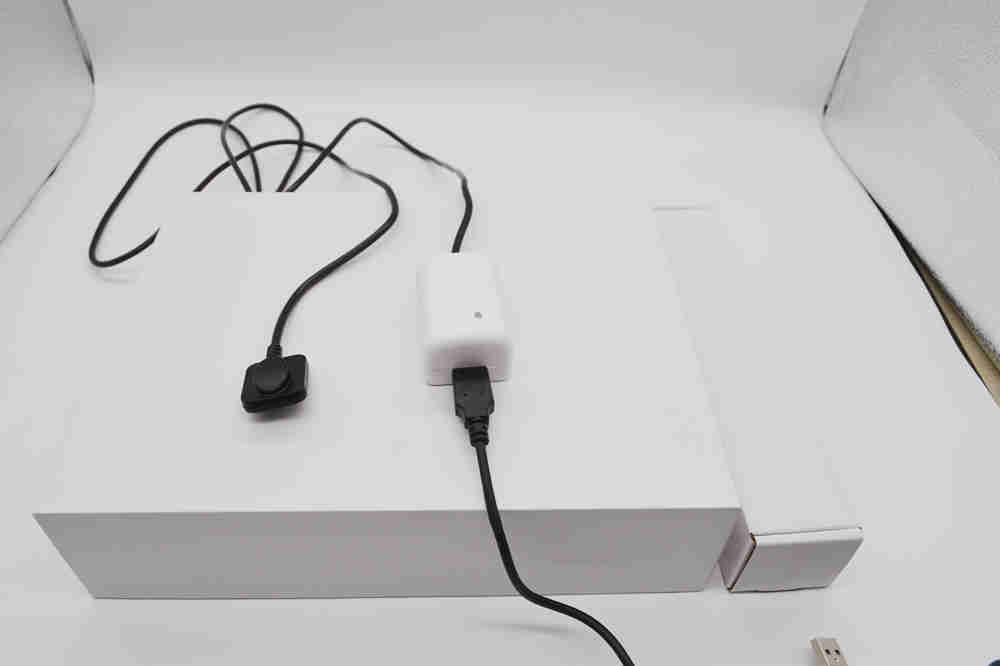

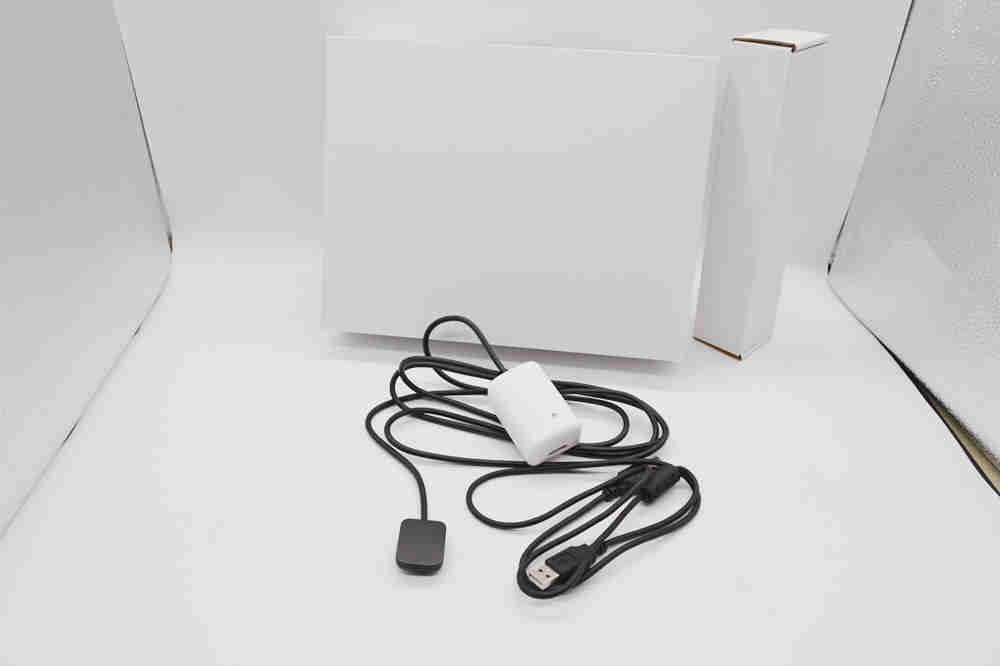

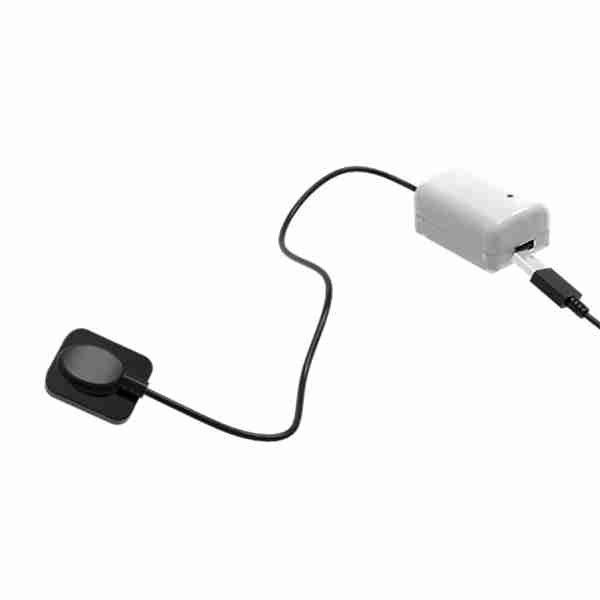

The product is mainly composed of a sensor, an adaptor, a USB connection cable and workstation software. Working together with an X-ray equipment, the Product is intended to make X-ray radiography in dental clinics or veterinary clinics,Sensor size Suitable for child(adult single tooth)and pets.

Product Name	Image RVG x-ray Sensor
Product Model	XVS2121
Operating Voltage	5VDC
Input power	500mW
Spatial Resolution	≥7Lp/mm
Low contrast resolution	Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil, Image uniformity ≤2%
Effective image area	20.16*20.16mm
Sensor Size	26.5mm×32mm×11.7mm
Adaptor Size	60mm×40mm×29.2mm
Total Cable Length	3 m (sensor cable + control box cable to PC)
Warranty	1 Year

Hardware Requirements:

Central Processor: Intel Core i3 or higher Internal Memory: 4GB or higher Hard Disk: 80GB or higher Display: 1280X1024 USB interface: two Keyboard: One Mouse: One

Software Requirement:

Operating Software:Windows 7 SP1,8,10 32/64bit Runtime: .Net Framework 4.6 or higher, VC++ 2015

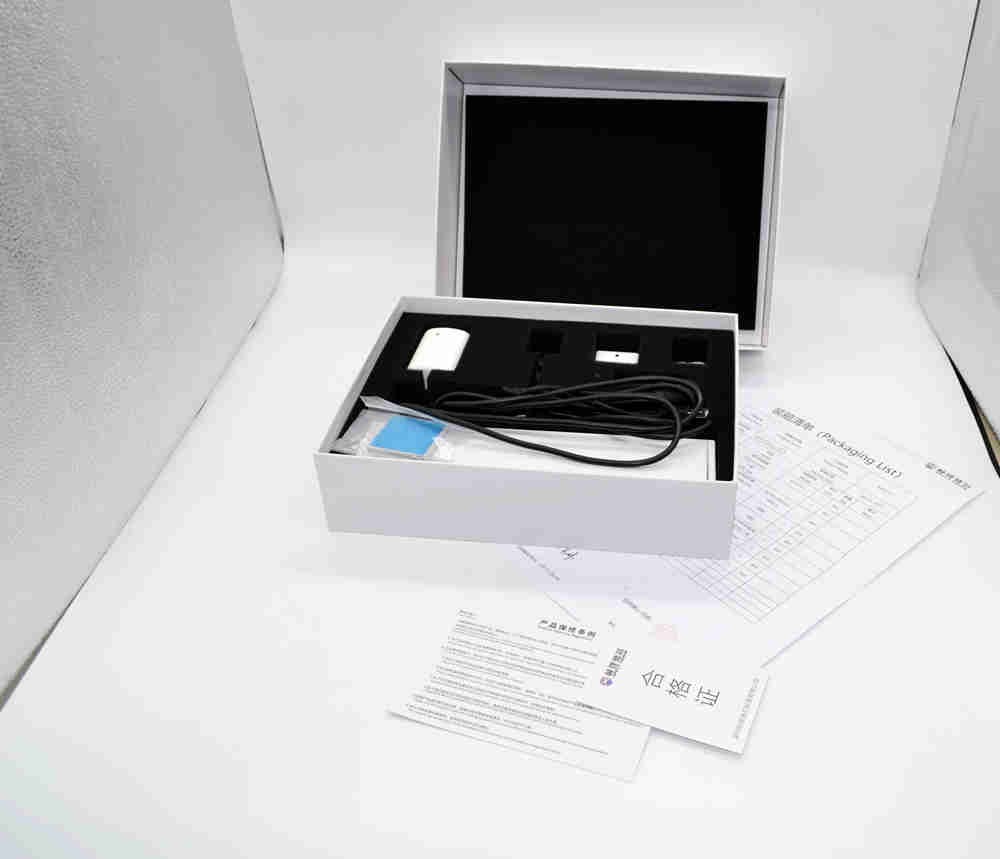

Accessory :

Digital sensor: 1 Set

USB cable :1 PCS

U Disk: 1PCS

Disposable protective sheath: 1 Box(500)

silicon loop: 1 PCS

Sensor holder: 1 PCS

Aluminum plate:1 PCS (40*40*6mm)
